New design Li-ion battery tube furnace for lab research and production
Home > Products > Tube Furnace/Muffle Furnace > Tube furnace > New design Li-ion battery tube furnace for lab research and production

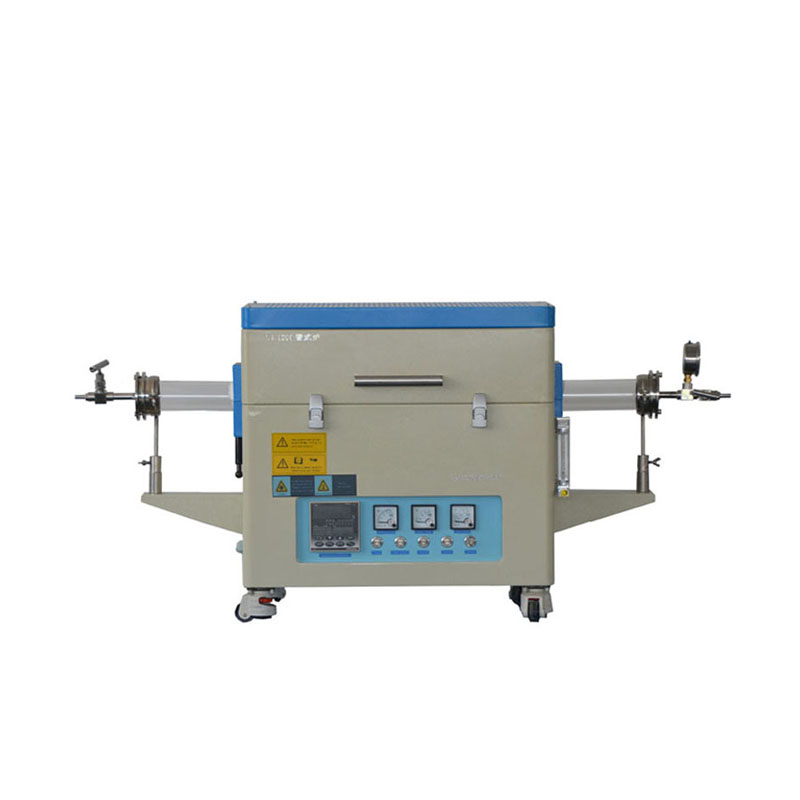

New design Li-ion battery tube furnace for lab research and production

Product Description

 New design Li-ion battery Tube furnace for lab research and production Elctrode die cutting machine for lithium battery Product Description   General specifications:

 Electrical requirements

 208-240VAC, 50/60 Hz, single phase

 Tube material

 High purity (99%) Al2O3 alumina

 Min working temperature

 300°C (572°F) Recommend at least 800°C for longer heating element life

 Max/constant working temperatures

 1700°C (3092°F) / 1600°C (2912°F)

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Refractory lining

 high quality 1800 grade fiber alumina

 Heating element / thermocouple type

 Molybdenum Silicide (MoSi2) / B-type

 Temperature controller

 4 programs and 40 segments (i.e. 4 x 10 segments or 2 x 20 segments).

 Max heating & cooling rate

 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)

 Heating vs constant zone length

 12" / 6"

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one
 vacuum gauge, two valves and four thermal ceramic blocks.

  Size comparison:
 Tube size  60mmOD x 1m L  100mmOD x 1m L  120mmOD x 1m L
 Maximum output  5 kW  6 kW  7 kW
 Furnace dimensions (LxWxH)  25 x 19 x 27"  25 x 19 x 27"  25 x 19 x 27"
 Shipping dimensions (LxWxH)  47 x 35 x 39"  47 x 35 x 39"  47 x 35 x 39"
 Shipping weight (Lb) 500 550 580
  Standard Package:
Part description  Quantity
 A1700 battery repair machine 1 pc

Stainless steel vacuum sealing flange set

1 set

Alumina tube 1000mm length

1 pc

Flow meter

1 pc

Spare heating element

2 pcs

Stainless steel hook

1 pc

Alumina ceramic thermal block

2 pairs

Thermal gloves

1 pair

Spare fuse

2 pcs
controller manual 2 pcs

   Related Products Our Company Our Company FAQ 1.When can I get the quote? We usually quote within 48 hours after we get your inquiry.   2.Can you do the design for us?
We can specially customize according to your technical requests.   3.What is your terms of delivery? We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.   4.what about the after-sale service?
A years warranty and lifetime free technical support.   5.Can we visit your factory? Yes,of course.Welcome to China to visit our factory.   Packaging & Shipping
